CANNONDALE TRAIL 5

DETAILS

• Piattaforma

  Trail
• Nome Modello

  Trail 5 SMU
• Codice Modello

  C26551M SMU

KIT TELAIO

• Telaio

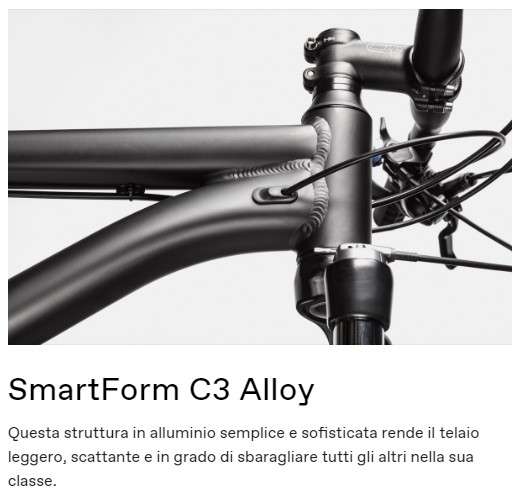

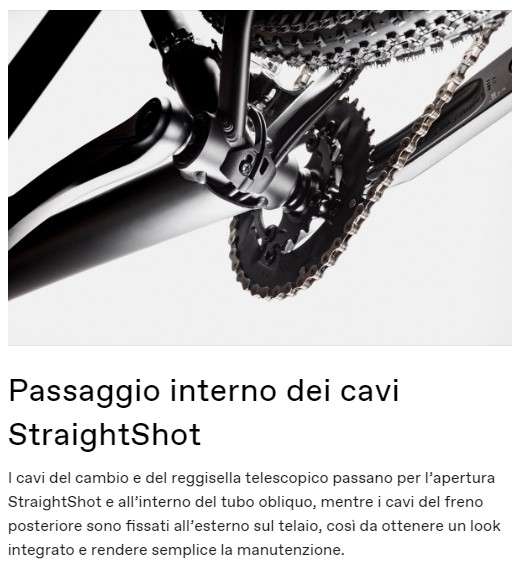

  SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
• Forcella

  SR Suntour XCR32 RL, 100mm, remote lockout, coil, 42mm offset (27.5″) 46mm offset (29″)
• Serie sterzo

  Semi-Integrated, 1-1/8″

TRASMISSIONE

• Cambio

  Shimano Deore M4100
• Deragliatore

  Shimano Deore M4100, 34.9 clamp
• Leve cambio

  Shimano Deore M4100, 10-speed
• Catena

  KMC X10, 10-speed
• Guarnitura

  Shimano M4100, 36/26
• Pacco pignoni

  Sunrace, 11-42, 10-speed
• Movimento centrale

  Sealed bearing cartridge, square taper

FRENI

• Freni

  Tektro M275 hydraulic disc, 160/160mm rotors
• Leve Freno

  Tektro hydraulic disc

RUOTE

• Cerchi

  WTB SX19, 32h
• Mozzo Anteriore

  Shimano HBTX 505
• Mozzo Posteriore

  Shimano FHTX505
• Raggi

  Stainless Steel, 14g
• Pneumatici

  Schwalbe Rocket Rick, 29×2.25″ (27.5×2.25″ – XS, SM), K-Guard
• Dimensioni pneumatico

  2.25
• Dimensione Ruote

  29
• Front Tire

  Schwalbe Rocket Rick, 29×2.25″ (27.5×2.25″ – XS, SM), K-Guard
• Rear Tire

  Schwalbe Rocket Rick, 29×2.25″ (27.5×2.25″ – XS, SM), K-Guard

COMPONENTI

• Manubrio

  Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm
• Attacco Manubrio

  6061 Alloy, 31.8, 7°
• Impugnatura

  Cannondale Dual-Density
• Sella

  Cannondale Stage 3
• Reggisella

  Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS – SM), 400mm (MD-XL)
